M1 is an indoor 3D/HD mapping robot that navigates autonomously in indoor spaces. Via high-performance cameras and LiDAR, M1 automatically collects high-resolution images and 3D spatial data making what was previously a manual mapping process, much more efficient. The resulting HD maps provide spatial data that is essential to location-based services, such as AR walking navigation and indoor autonomous service robots.

Designed by VLND DESIGN

© NAVER All Rights Reserved.

Design for Maximizing Scan Range and Driving Safety

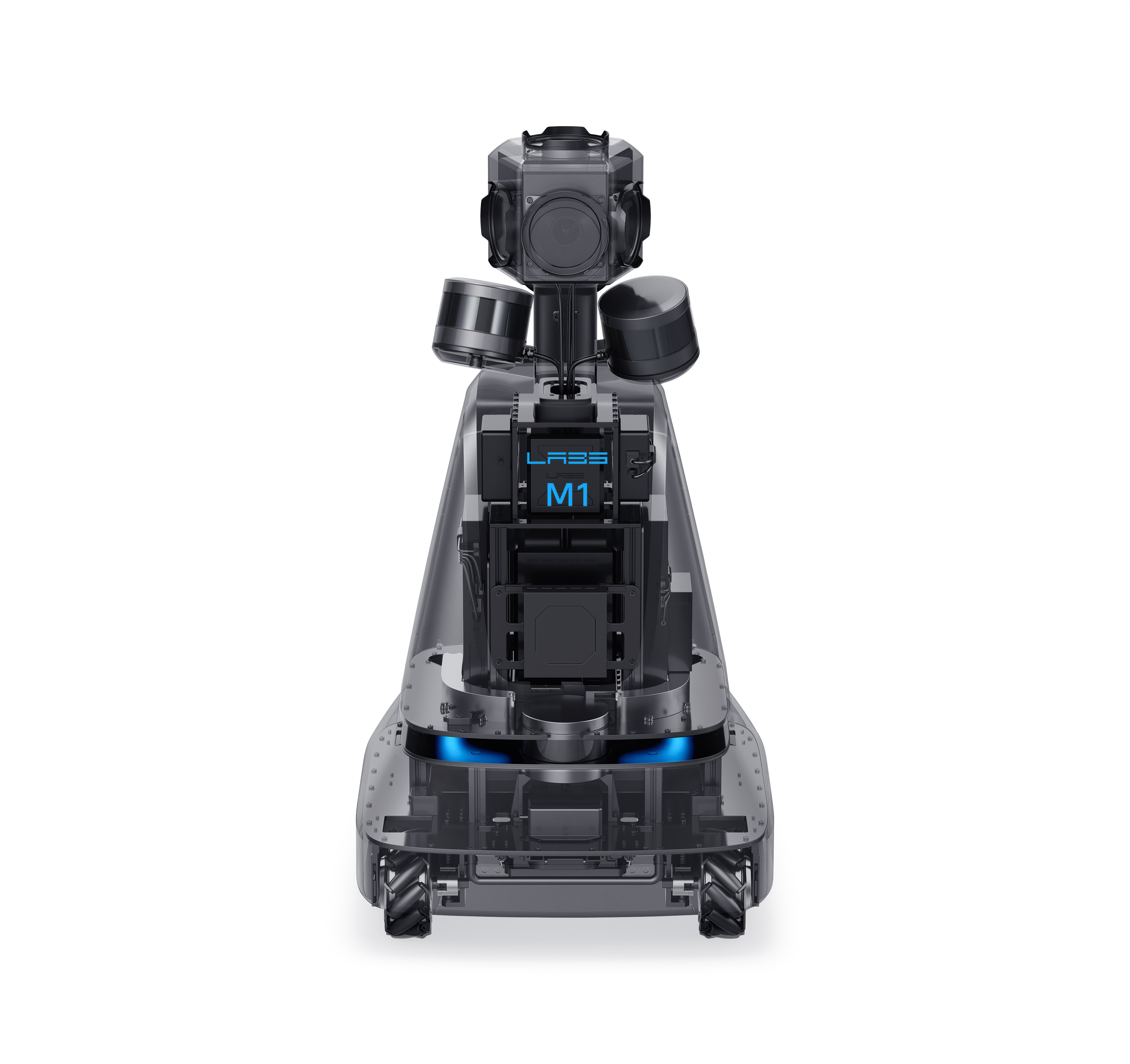

The focus of the design was to maximize LiDAR's (Light Detection And Ranging) scan range, while enhancing driving safety and gaining an accurate sense of proportionality. The two upper 16-channels of LiDAR's are fixed at uniquely deviated angles and at an ideal height that maximizes the scan area. Each LiDAR scans at a speed of 300,000 points per second with a Horizontal FOV of 360 degrees and a Vertical FOV of 30 degrees. M1 is 490mm wide allowing it to pass through most doors and has a square footprint that maximizes the wheelbase and tread, while minimizing overhang to enhance driving safety. M1 has a tapered shape with the heavy modules, such as motors and batteries, at the bottom, which lowers the center of gravity and increases driving safety.

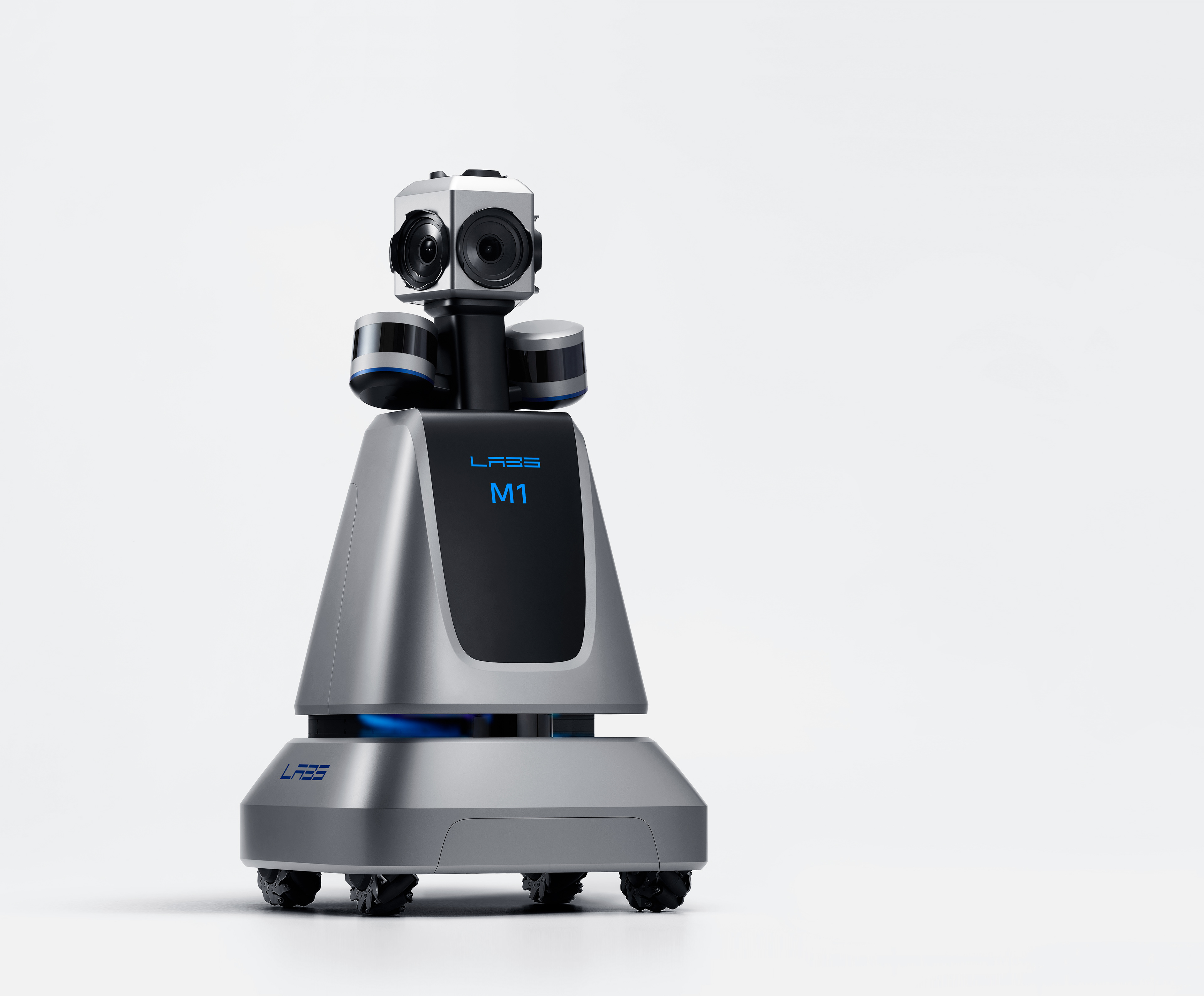

​Iconic Design, Reminiscent of Precision Technologies

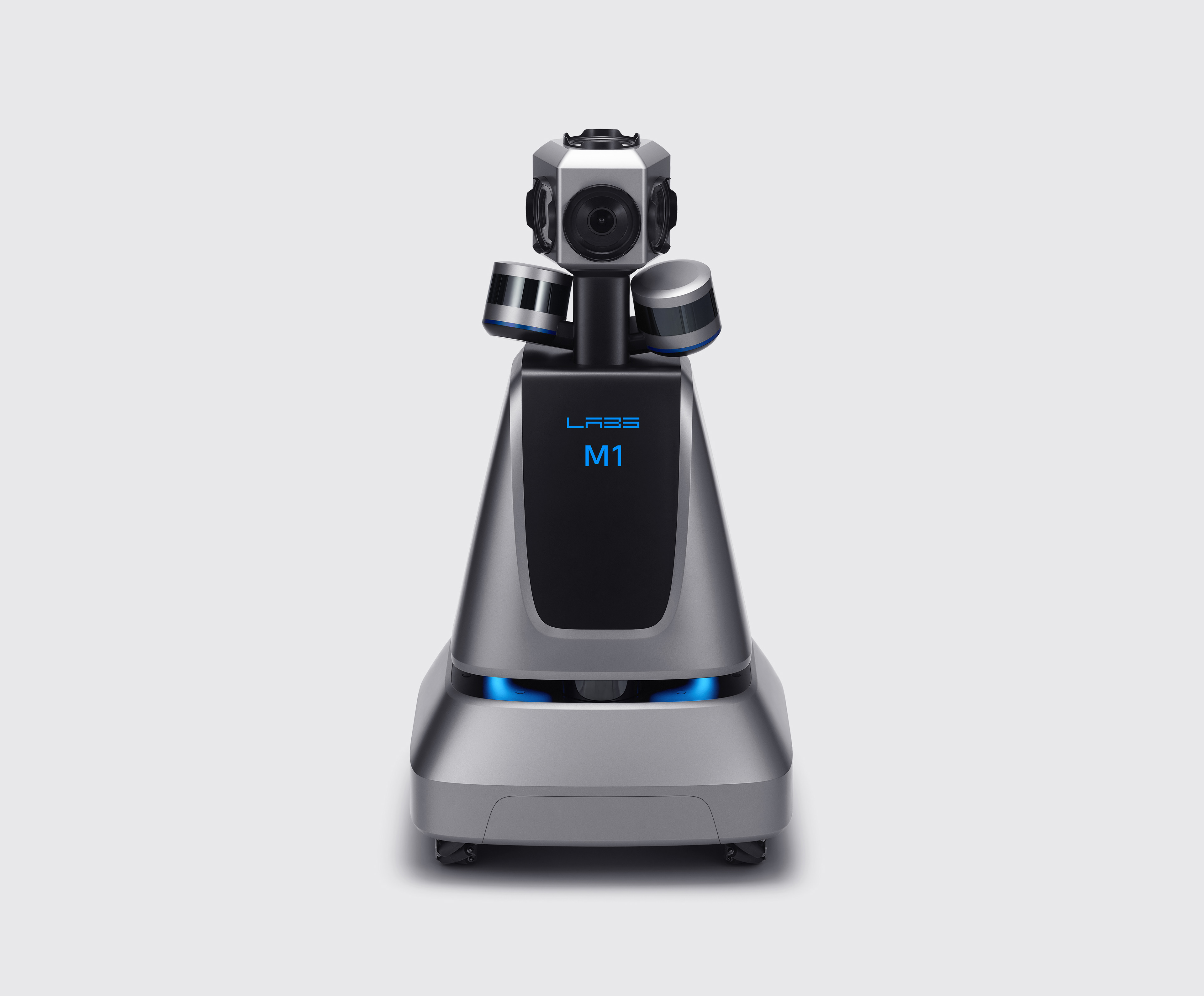

The product's design focus includes performance precision and functional accuracy. Users can recognize M1's status at a glance from any direction due to the lighting indicators at the chest and at the bottom.

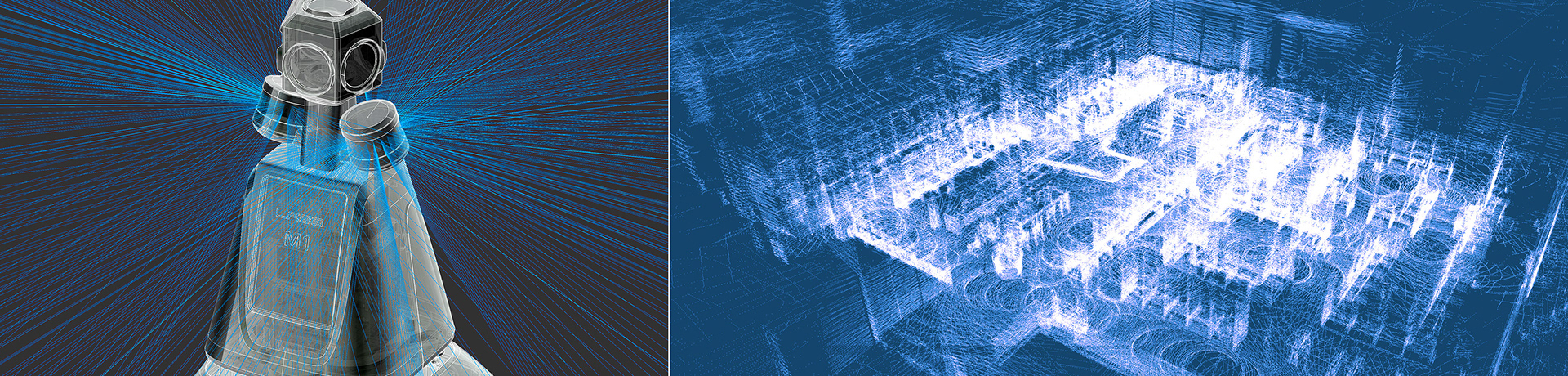

3D Indoor Map Creation

M1 uses real-time 3D SLAM(Simultaneous Localization And Mapping) with hierarchical motion planning. It transforms point cloud data scanned by laser sensors into 3D mesh spatial data, and creates indoor 3D maps though the use of precision mapping technology. High-resolution indoor 3D maps generated by M1 will open up possibilities for numerous commercial and industrial applications in the near future.

The parting line on the back is for easy maintenance, and the two covers at the bottom are for detaching batteries inside. There is an emergency stop button on the back in case of sudden malfunctions. M1 is equipped with 4 mecanum wheels which move in any direction for smooth scanning.

M1 demonstrated making 3D indoor precision maps autonomously at the Seoul Motor Show for 10 days. The media and public showed a lot of interest in the first robot made by NAVER. It plans to digitize the indoor spaces that have not been accessible to GPS.

Red Dot Award: Product Design Winner, Germany​​​​​​​​​​​​​​
International Design Excellence Awards Finalist, US
